  • UV LED Linear Curing Systems

    • UVET‘s linear UV LED curing lamps are a high efficient curing solution. Utilizing advanced UV LED technology, this product line offers  high UV intensity of up to 12W/cm2, allowing for fast and effective curing. In addition, these lamps also feature irradiation width of up to 2000mm, which can cover a large area of ​​workpieces and ensure the uniform curing.
    • These linear UV LED curing lamps are suitable for curing coatings, inks, adhesives and other applications due to their high UV output, long irradiation area and uniform curing. Contact UVET for more customized services to meet specific curing requirements.
    Inquiry feiji

    UV LED Linear Curing Series

    Model No.

    ULINE-200

    ULINE-500

    ULINE-1000

    ULINE-2000

    Irradiation Area (mm)

    100x10 | 100x20
    120x10 | 120x20
    150x10 | 150x20
    200x10 | 200x20

    240x10 | 240x20
    300x10 | 300x20
    400x10 | 400x20
    500x10 | 500x20

    600x10 | 600x20
    700x10 | 700x20
    800x10 | 800x20
    1000x10 | 1000x20

    1350x10 | 1350x20
    1500x10 | 1500x20
    1600x10 | 1600x20
    2000x10 | 2000x20

    Peak UV Intensity@365nm

    8W/cm2

    5W/cm2

    Peak UV Intensity@385/395/405nm

    12W/cm2

    7W/cm2

    UV Wavelength

    365/385/395/405nm

    Cooling System

    Fan / Water Cooling

    Looking for additional technical specifications? Contact with our technical experts.

    Leave your message

    UV Applications

    https://www.uvet-adhesives.com/uv-curing-lines/
    https://www.uvet-adhesives.com/uv-curing-lines/
    https://www.uvet-adhesives.com/uv-curing-lines/
    https://www.uvet-adhesives.com/uv-curing-lines/

    UV LED linear curing systems deliver high curing energy for high speed processes. These systems use UV LED technology to provide precise, efficient curing for a wide range of applications.

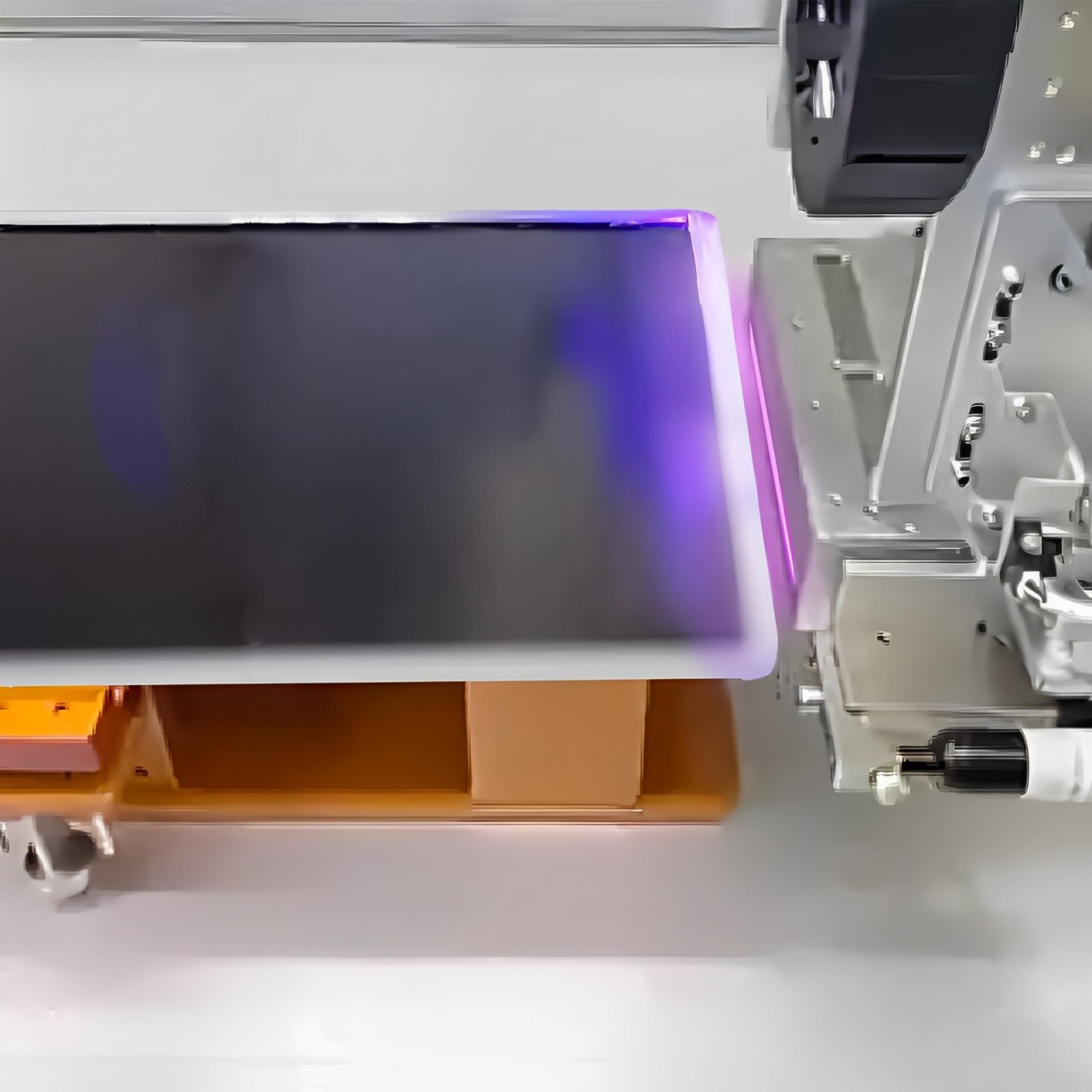

    In the manufacture of display surface edge encapsulation, linear UV lamps are used to cure adhesives and sealants, ensuring a strong and durable bond between the display surface and the encapsulation material. This enhances the integrity and durability of the display and improves the overall quality of the finished product.

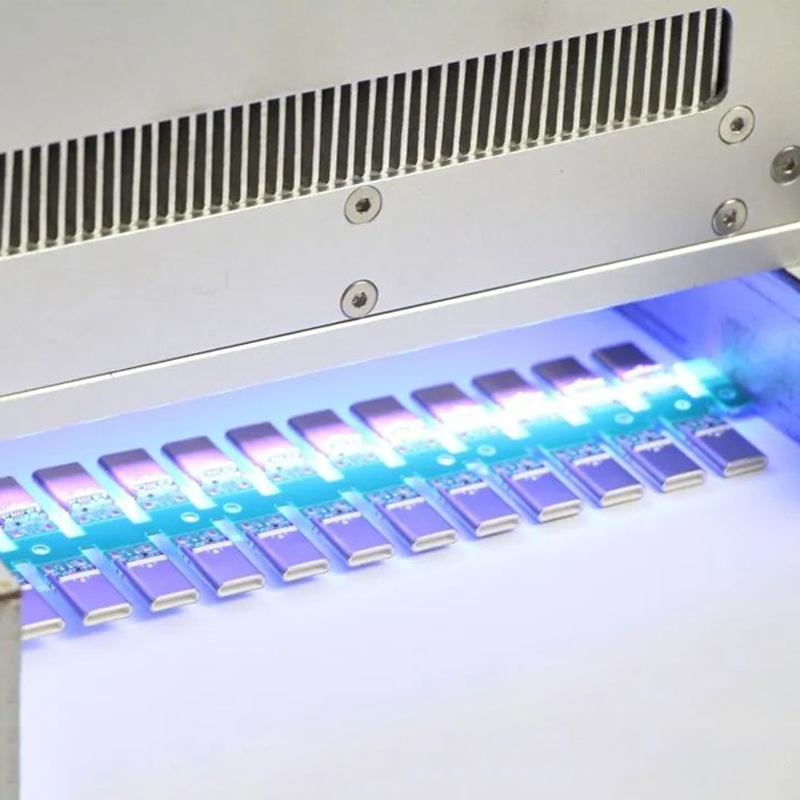

    In the semiconductor industry, linear UV LED lamps are also essential for curing materials such as wafer chips. The precise and consistent UV radiation emitted by the light source enables efficient curing of photoresist materials used in the semiconductor manufacturing process, protecting sensitive materials from contamination and physical damage.

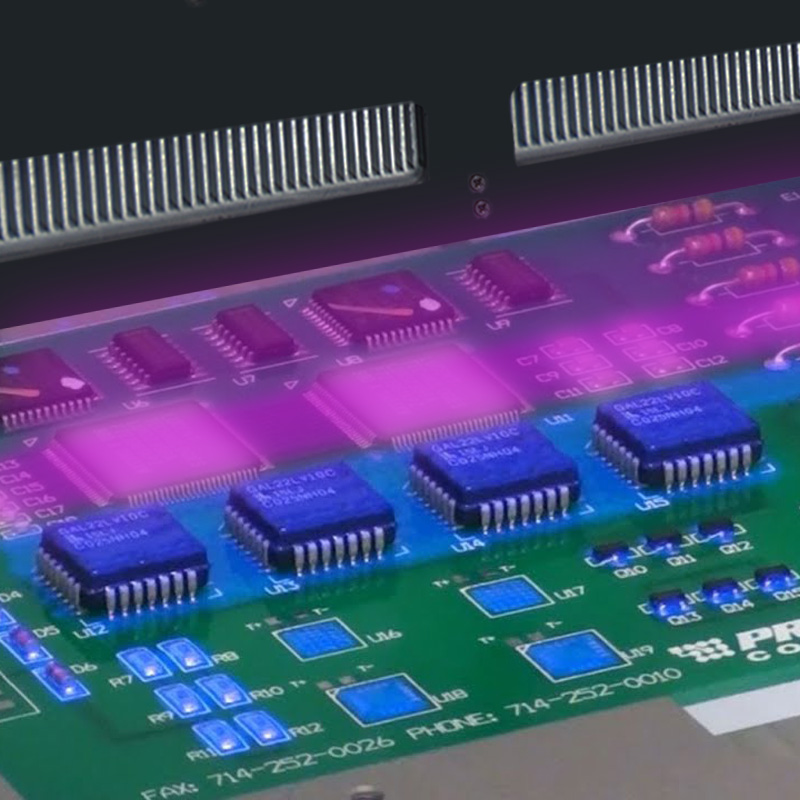

    In addition, linear UV light sources are widely used in core circuit manufacturing. The UV light effectively cures the UV coating to form a strong and durable protective layer. This protective coating improves the performance and life of electronic devices, keeping them stable under a wide range of operating conditions.

    Overall, linear UV LED systems provide reliable and efficient solutions for a wide range of electronic and semiconductor products. The light source allows precise control of the curing process, resulting in superior performance and consistent results.
